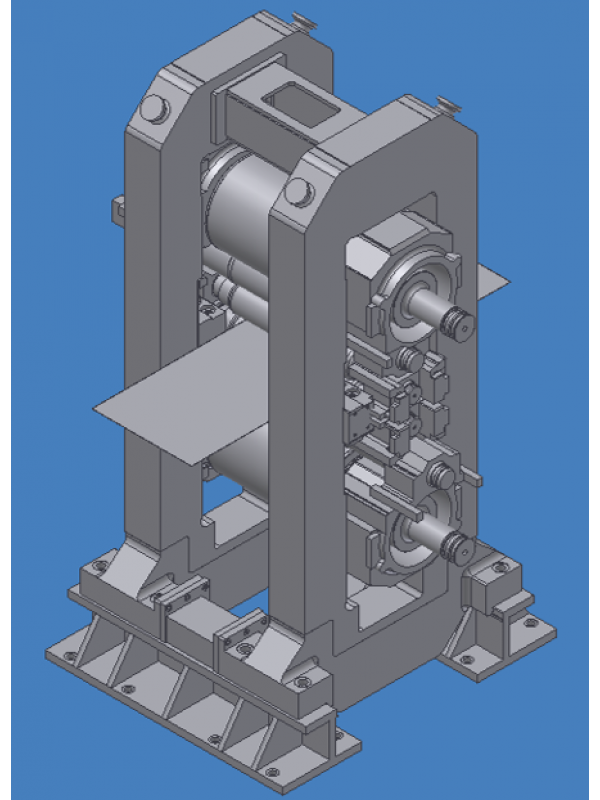

Reversing Cold Rolling Mill (CRM)

Input Thickness	1.8 – 6 mm
Output Thickness	0.15 – 2 mm
Strip Width	600 – 1600 mm
Input Material	Hot rolled and pickled, Cold Rolled with intermediate annealing
Construction Type	4Hi / 6Hi, Two stand

Salient Features

Rolling Speeds up to 1400 mpm
Option of DC & AC drive system
Auto-Loading of coil on POR mandrel
Payoff Reel with Outboard Bearing Support
Automatic Strip Centre Guiding at POR
True Circle Tension Reel Mandrels with Grippers and Outboard Bearing Support
Coil Strippers at Entry and Delivery Tension Reels
Load Cells for strip Tension Measurement and Control
Dynamic Tension Stability Control
Automatic Slow Down (ASD) Control
Shear at Entry and Delivery
Positive and Negative Work Roll Bending
Hydraulic Roll Force Cylinders
Hydraulic Automatic Gauge Control (HAGC)
Non-contact type strip thickness measurement
Constant Mill Pass Line Wedge Adjust System
Intermediate Roll Shifting & Bending
Work Roll Drives - Independent / Thru Pinion Stand
Spindle Head Clamp for Mill Drive Spindles
Zoned Type Work Roll Cooling Headers
Automatic Flatness Control System with Spot Cooling
Quick Work Roll and Intermediate Roll Change system (QWRC) with Side Shifting
Hydraulic Cylinder operated Back up Roll Change
Cylindrical Rolls without crown
Air-Oil Lubrication for Backup Roll, Grease Lubrication of IMR & WR

Possibility of configuring combination mill for both cold rolling and skin passing with entry side bridle or bridle on both sides for uniform tension control during skin passing of thinner gauges.
