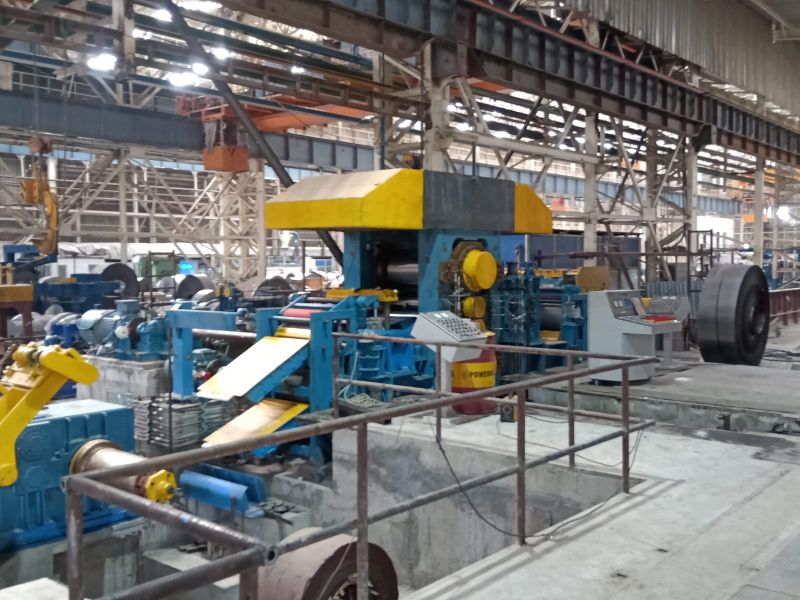

SKIN PASS MILL (SPM)
Cold Rolled Steel (CR) / Galvanized
Input Material
| Strip Thickness | 0.1 – 1.5 mm |
| Strip Width | Upto 1650mm |
| Construction Type | 4Hi |
Salient Features
- Function to suppress yield point, Spangle Breaking and texture transfer
- Entry & Exit Bridle for thinner gauges
- SPM in line with Galvanising line and other process lines
- Hydraulic Roll Force Cylinder with Servo Valves to control elongation
- Wet Skin Passing with recirculating system
- Roll Polisher
- Load cell to monitor Roll Separating Force (RSF)
- Strip Tension Control with Tensiometer
- Quick work roll change system
for Hot Rolled Material
Hot Rolled (HR) steel Black / Pickled
Input Material
| Strip Thickness | 2 – 6 mm |
| Strip Width | Upto 1650mm |
| Construction Type | 4Hi |
Salient Features
- Walking Bem Conveyor at entry & exit
- Work roll polisher
- Dust extraction system
- Other features are similar to Skin Pass mill for CR steel
